This OBSIDIAN® SERIES Portable 100-watt panel generates enough power for longer off-grid stays in small motorhomes or shorter trips in slightly larger motorhomes. This kit is perfect for Winnebago motorhomes produced between 2006 to today with a solar charge controller installed between your solar-ready sidewall port and your battery bank.
Our OBSIDIAN® SERIES Portable Kit is the perfect on-the-go power solution to charge the batteries in your Winnebago motorhome. This new design features patented low-profile solar panels to provide the ultimate flexibility and durability in a mobile and off-grid solar charger. These Made in USA panels are handcrafted in Bend, Oregon using premium materials and precision manufacturing techniques to meet your off-grid power needs and exceed your expectations.

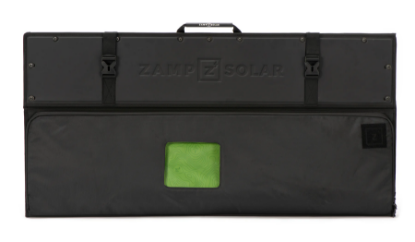

Perfect for tight storage spaces under your motorhome and ultimate versatility, the OBSIDIAN® SERIES portable kits are low profile, robust, & lightweight. The OBSIDIAN® SERIES portable kits are 50% slimmer than our Legacy Series Portable Kits. OBSIDIAN® SERIES Portable Kits feature an integrated carry case that doubles as a quick-deploy adjustable stand. Slim anodized aluminum carry handle makes handling a breeze. The Tactical Carry Case utilizes an integrated storage bag to hold all the necessities and the case lays flat to maximize storage potential.
This unregulated portable kit does not include a charge controller because there will be a factory-installed controller in your Winnebago Class C, Class B, or Class A Motorhome. Do not tie an unregulated portable system directly into a power system without the use of a charge controller which was produced prior to 2006.
Kit Includes (USP2004): (Download Technical Spec Sheet)

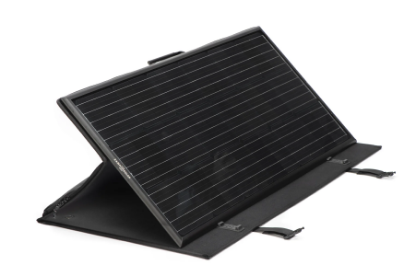

- Patented OBSIDIAN® SERIES 100-watt solar panel
- The tactical all-weather integrated carry case quickly deploys into an adjustable stand.
- Padded ballistic-nylon accessory pocket to house all cables, charge controller, and future upgrades.
- All-weather ATP plugs for customizable and scalable integration.
- 15-foot portable ATP-ATP extension cable
- 6” ATP-SAE Adaptor
Tech Specs:
Weight: 23 lbs. (Note that weights do not include cables)
Closed Dimensions: 44.5” tall x 21.75” wide x 2” thin
Wattage: 100-Watt Power Output
Output: Generates 5.01 amps
Open Circuit Voltage: 26.15 volts
Warranty: 25-Year output warranty
