Dometic's slide out awnings made for RV slide rooms require the arm/hardware bracket kits for a complete installation. This arm/hardware bracket kit was previously made in an older "hex" style whereas the current arm/hardware kit is made in a newer "C-shape" style.
The "C-Shape" style hardware has undergone a design changed and now arrives pre-assembled for an easier and faster installation process. The new design provides some wind protection which helps protect your awning fabric.
This kit in particular is used for Dometic's Deluxe and Elite Slide Topper Series. It is available in two different styles (Tall or Short) and two different colors (Black or Polar White).
The Tall hardware kit offers a 45° mounting clearance (most commonly used kit) and the Short hardware kit offers a 90° mounting clearance.
| Brand | Dometic |
|---|
| Model | 9800018.401B |
|---|
| Manufacturer SKU | 9108783085 |
|---|
| Hardware Color | White |
|---|
| Hardware Size | Tall |
|---|
| Features | 45° Angled Mounting Brackets
Mounting Type: Bolt-On |
|---|

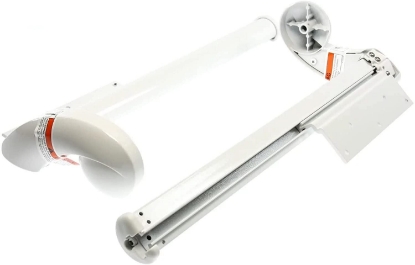

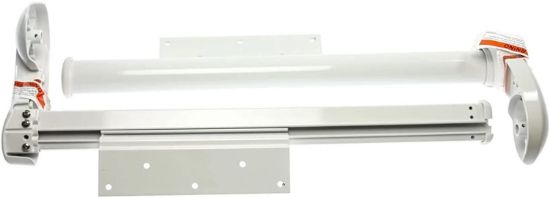

| Included | (2) Topper Tall (wall) Bracket with Hardware
(1) LH Topper Arm with 18" Extension (Bar)
(1) RH Topper Arm with 18" Extension (Bar)

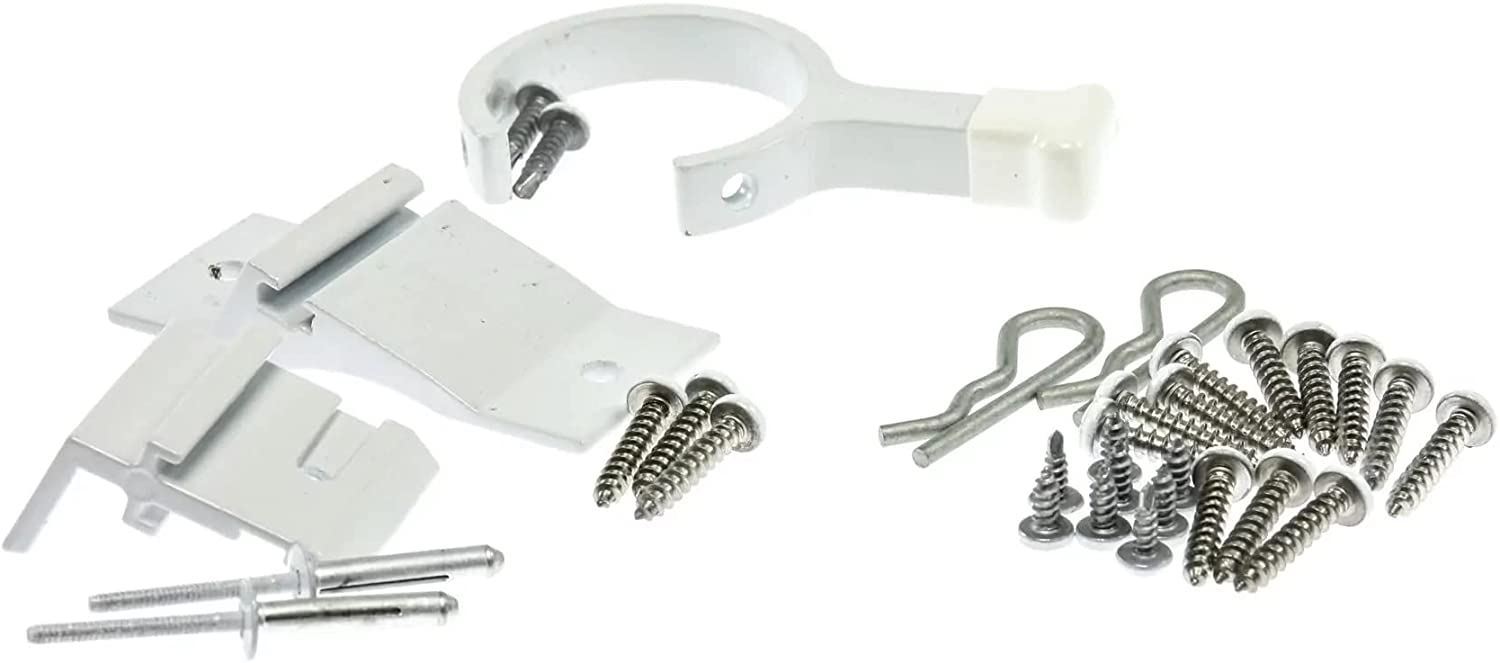

(2) Cotter R-Pin
(12) #10-12 x 1" Screw
(6) #8-18 x 3/8" Screw
(2) #6-20 x 7/16" Self Drilling Screw
One Anti-Billow Stop Kit:
(1) Anti-Billow Stop
(2) #10-16 x 3/4" Screw
One Anti-Billow Bracket Kit:
(1) Anti-Billow Bracket
(1) Anti-Billow Spacer
(3) #10-12 x 3/4" Screw
(2) 3/16" x 3/8" Oscar Rivet
Installation & Operating Instructions |
|---|
| Net Weight | 4.90 |
|---|
| Gross Weight | 5.80 |
|---|
| Special Order Item | No |
|---|
| |
|---|
| UPC | 713814222079 |
|---|
