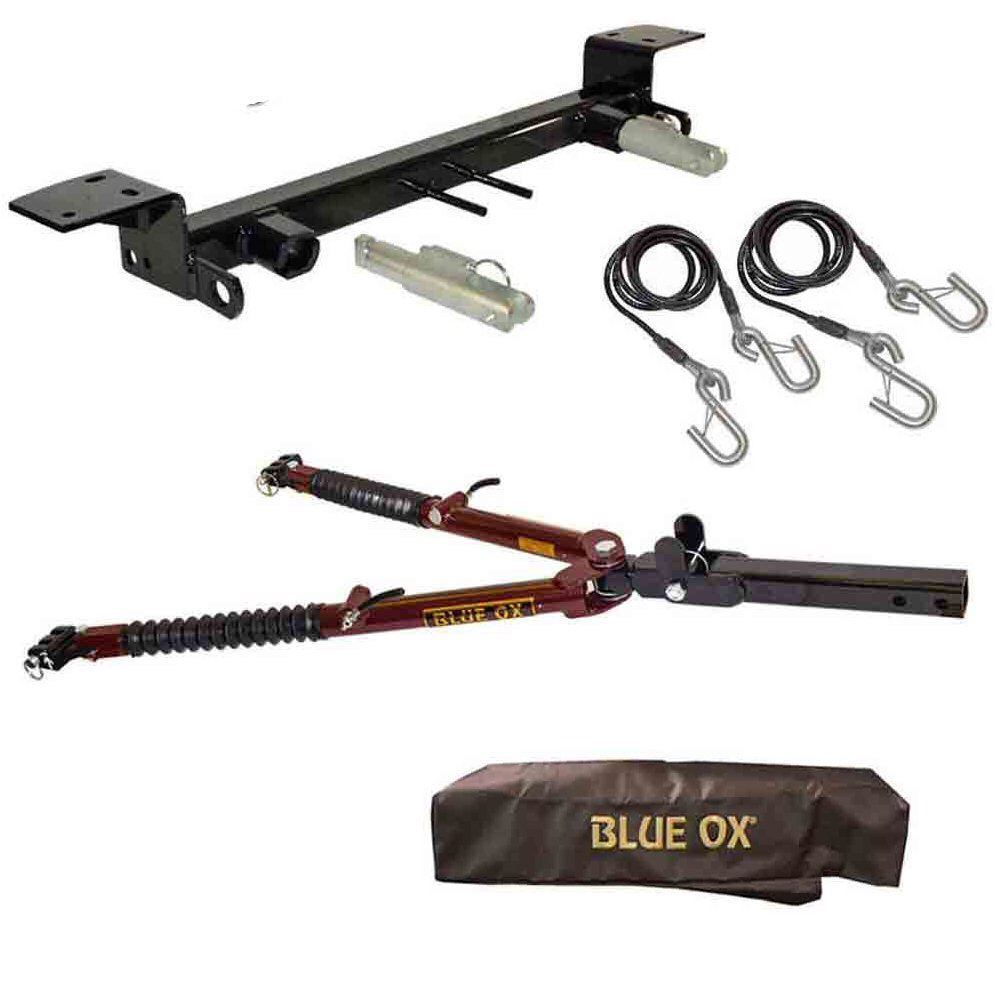

Blue Ox Ascent Tow Bar (7,500 lbs. tow capacity) & Baseplate Combo fits Select F-150, Expedition, Navigator BX2681

Blue Ox BX2681 Baseplate Fits Select F-150, Expedition, Navigator
Manufacturer: Blue Ox
Availability: 5 in stock
SKU: 14-6882-Kit-Ascent
Manufacturer part number: BX2681-BX4370
GTIN: 798459092744
Free shipping
$1,928.30

Product Details

Blue Ox BX2681 baseplate fits the following vehicles:

2016-2020 Ford F-150 Raptor
2015-2020 Ford F-150 All Models
2009-2014 Ford F-150 (No Raptor/King Ranch)
2015-2017 Lincoln Navigator
2015-2017 Ford Expeditions

Blue Ox baseplates are easy on your suspension and pleasing to the eye because they are designed with hidden reinforcements. This vehicle specific baseplate is integrated into the individual bumper design of the towed vehicle. The BX2681 baseplate utilizes a removable tab style to leave a clean look when the vehicle is not being towed.


BX2681 Baseplate Footnotes:

  • 1-Bumper fascia must be removed and replaced during installation.
  • 3-Requires some minor drilling
  • 9-Tow hooks must be removed and remain off the vehicle after installation
  • 12-Baseplate has non-24 spaced attachment tabs. This requires either a motorhome mounted tow bar or an adapter to utilize a car mounted tow bar. Tow bar adapters are not to be used with vehicles weighing over 5000 lbs.
  • Important Towability Note: Blue Ox offers the above baseplate for your vehicle, but how that vehicle is equipped (i.e. automatic transmission, 4-wheel drive, etc.) must be considered when determining its towability. Please read the owner's manual and/or consult your dealer for the correct towing procedures for your vehicle. Additional equipment such as a transmission pump or driveshaft disconnect may be required and are sold separately. Failure to comply with these requirements may result in damage to the towed vehicle or personal injury.



Towed Vehicle ElectricalBrake System & Receiver and Tow Bar Locks are sold separately.

Specifications

Specifications
BRANDBlue Ox
BASEPLATE INSTALL TIME3 hours
TAB TYPERemovable
TAB HEIGHT17-1/2 inch
TAB WIDTH35 inch
SUGGESTED WIRINGStandard Tail Lights - BX8869, LED Models BX8848
